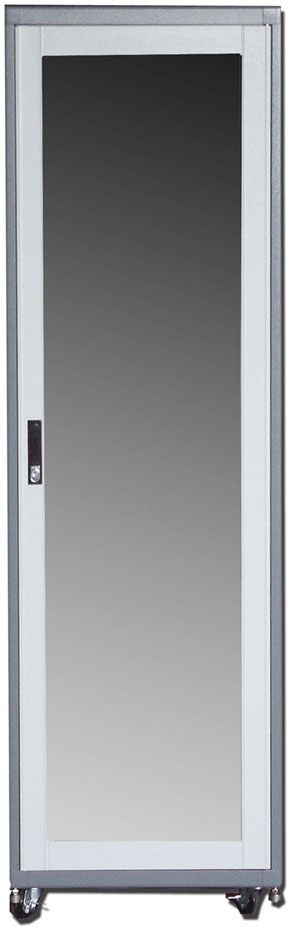

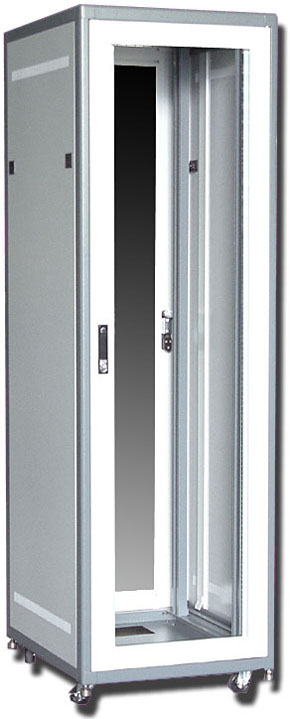

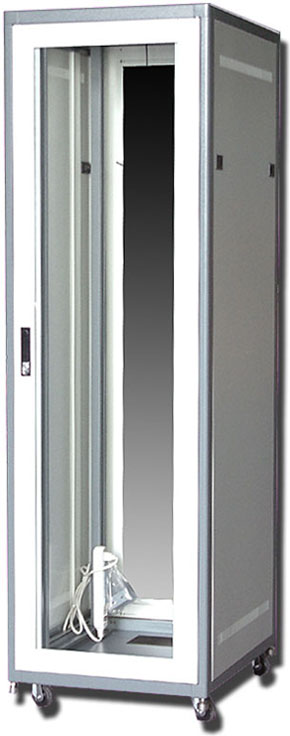

TM Series: 19" multi functional internet cabinet |
TM multi functional internet cabinet series designed based on ANSI/EIA RS-310-C standard, it's a sealed aluminum frame mechanism which is compliant with office intranet system and ISP and various internet system, including laboratory and cable routing environment. It passed UL and CE approvals, also vibration test passed by MIL-STD-167 and gravity 2000Kg passed by CNS-3511. The standard equipment included removable front/rear acrylic doors with flat keylock, two top cooling fans by 120x38m size, modularized top/bottom plate, aluminum ADC-12 three-direction connection, top and bottom mechanical frame set, main mechanical aluminum pillars designed by inner empty material. The sub removable aluminum mounting rails (thread, not square mounting holes), strength compensation side pillars, AC110V~220V-15A eight holes power strip, stainless screws, removable side doors, wheels with brake, floor levels, M5(M6) screws and M5(M6) panel screws....etc. TM series cabinet's external width is 600mm but internal width keeps 19". The major aluminum pillars are 45mm wide ¡Ñ 60mm deep by the aluminum material AL 6063T5 to ensure the main construction to be durable and anti-vibration. Additionally TM series can select the external depth by 600mm~750mm to meet different IPC. The sub removable aluminum pillars are 30mm wide ¡Ñ 65mm deep by four-side aluminum extrusion (material AL 6063T5) that can be forward/backward movement. The modularized top plate with dust-proof design installed two standard high speed 120x38mm AC ball bearing fans (maximum eight fans but option), each fan has 2400 RPM and 72CFM airflow. The top and bottom of removable side doors opened vent holes in order to attain the airflow direction correctly and smoothly, and tool-less to open/close the side doors. The front/rear doors use 3mm thick acrylic material. |
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| ¡@ | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
¡@ |
¡@ | |||||||||||||||||||||||||||||||||||||||||||||||||
|
